Motor shuttle valve SF-B-3

Motor shuttle valve SF-B-3 2021-3-11 This article is read 906 second

戳我试试

1.Product use

The motor shuttle valve is a straight stroke valve, which combines the valve body with the actuator. It has the advantages of small volume and convenient installation. The function of shuttle valve is "selection". No matter which oil inlet has high pressure, it can ensure that the oil outlet has pressure. It is often used to lead a control oil circuit between two main oil circuits with alternating pressure, so as to control the opening and closing of motor brake.

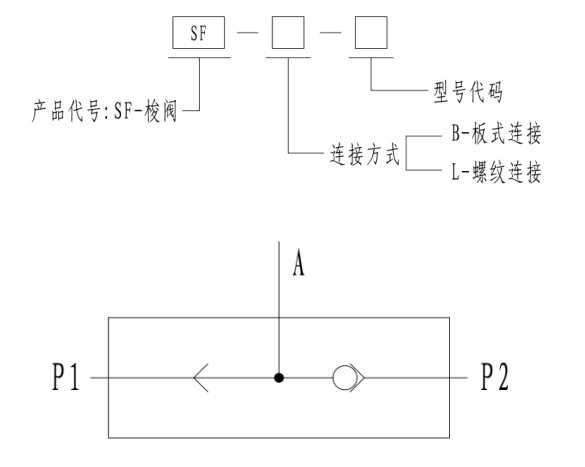

2.Function symbol and product model meaning

戳我试试

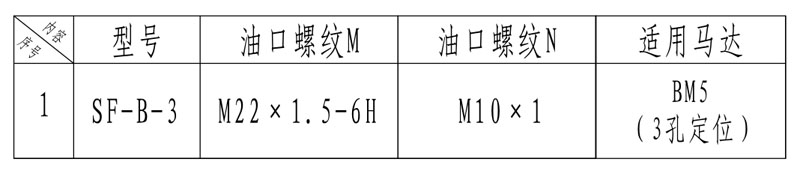

3.SF-B-3 Technical parameters of motor shuttle valve

戳我试试

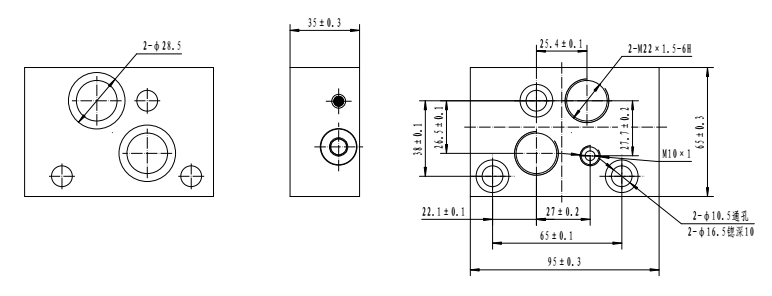

4.SF-B-3 Outline drawing of motor shuttle valve

戳我试试




Motor shuttle valve SF-B-3
