1.Product use

The motor speed control valve is an accessory device of the hydraulic motor. Adjusting the size of the valve passage under a fixed pressure can limit the driving amount of the high-pressure oil and control the rotation speed of the hydraulic motor by adjusting the flow. At the same time, the flow of the valve will not change with the different loads.

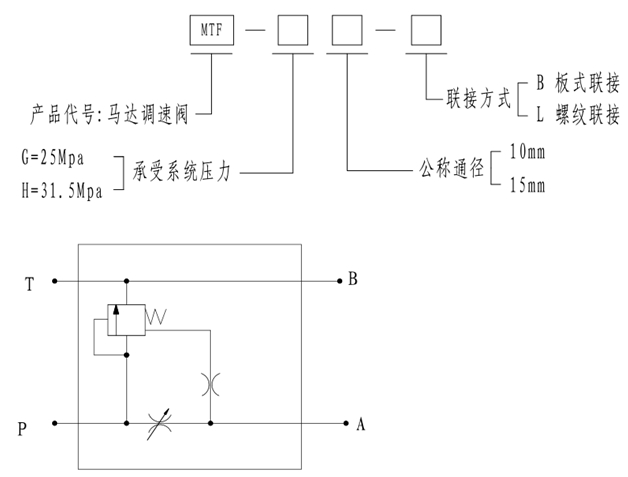

2.Function symbol and product model meaning

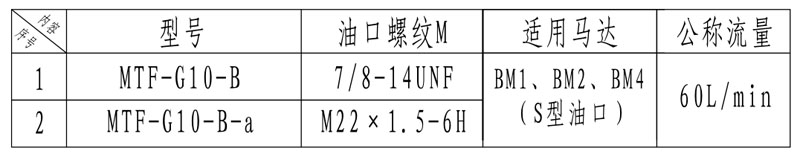

3.MTF-G10B-B Technical parameters of motor speed control valve

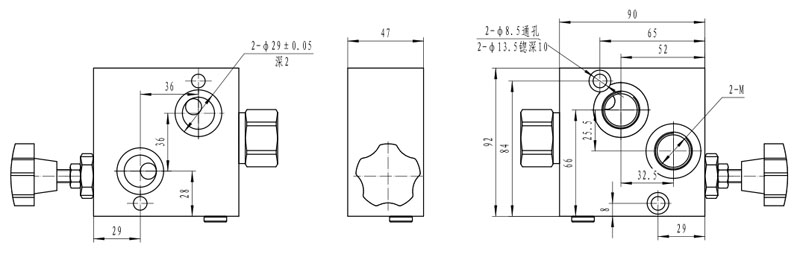

4.MTF-G10B-B Outline drawing of motor speed control valve
