1.Application of speed control valve

Speed control valve is under a fixed pressure, adjusting the size of the valve passage can limit the driving amount of high-pressure oil, to adjust the flow to control the movement speed of the actuator, and the flow of the valve will not change with the load.

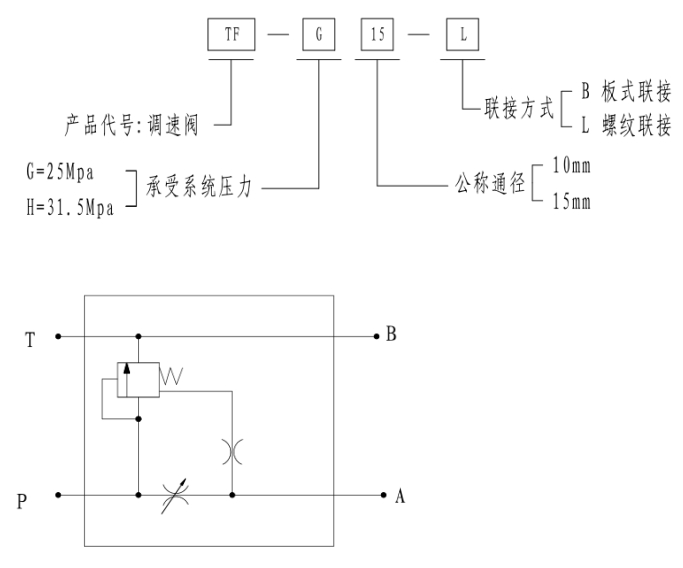

2.Function symbol and product model meaning

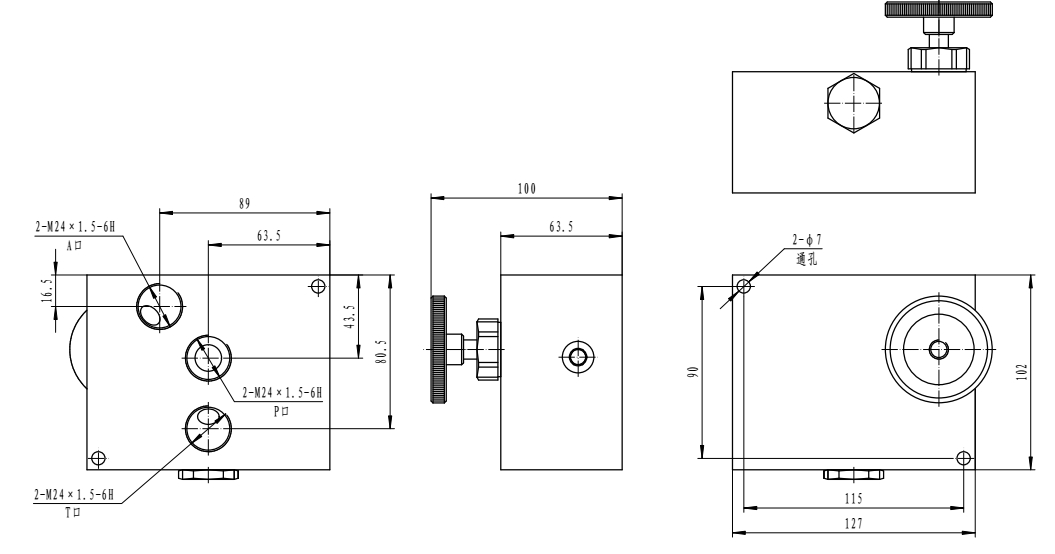

3.TF-G15-LOutline drawing of speed regulating valve
