1.Product use

ZDa-F15LSeries multi way valve belongs to high pressure integral multi way directional valve, parallel circuit. The valve is preset with pressure output port. After adding screw plug, P1 port can be used in series with other hydraulic components. The valve has the advantages of compact structure, small volume, high working pressure, good performance, reliable operation and convenient maintenance. It is widely used in hydraulic system of small construction machinery, mining machinery, sanitation machinery and other machinery.

★ Built in check valve: built in check valve in valve body to prevent oil backflow

★ Built in relief valve: built in relief valve in valve body to control system force

★ Oil way form: parallel oil way

★ Body structure: integral structure, 4,5,6 options

★ Stem center function: A, Z, O, y, etc

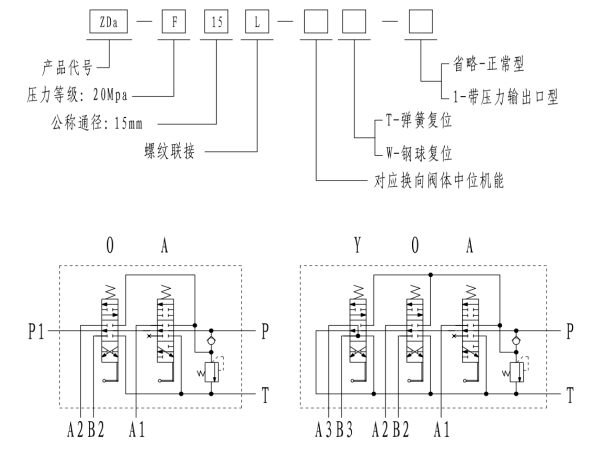

2.Function symbol and product model meaning

3.Technical parameters

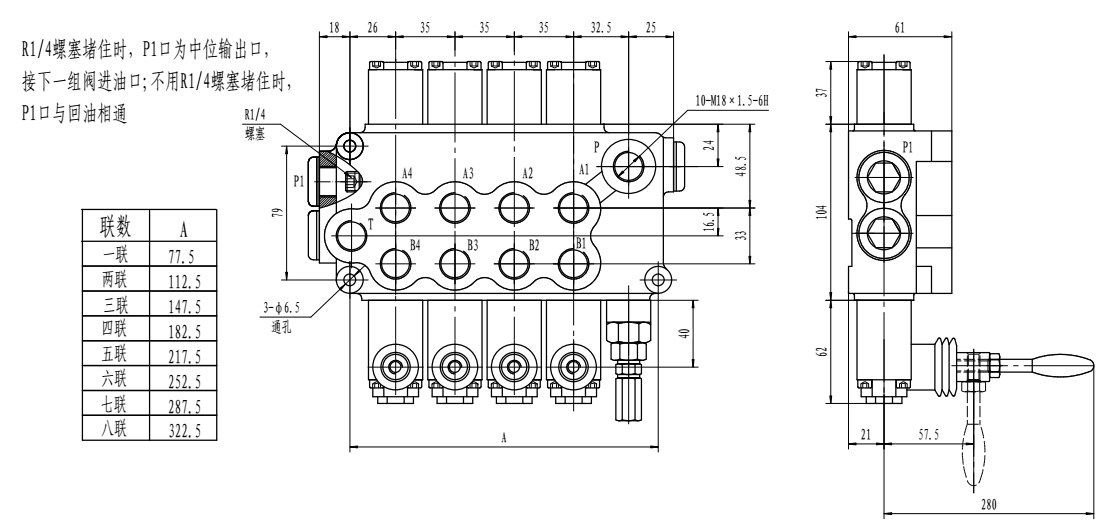

4.Outline drawing of zda-f15l multi way valve
